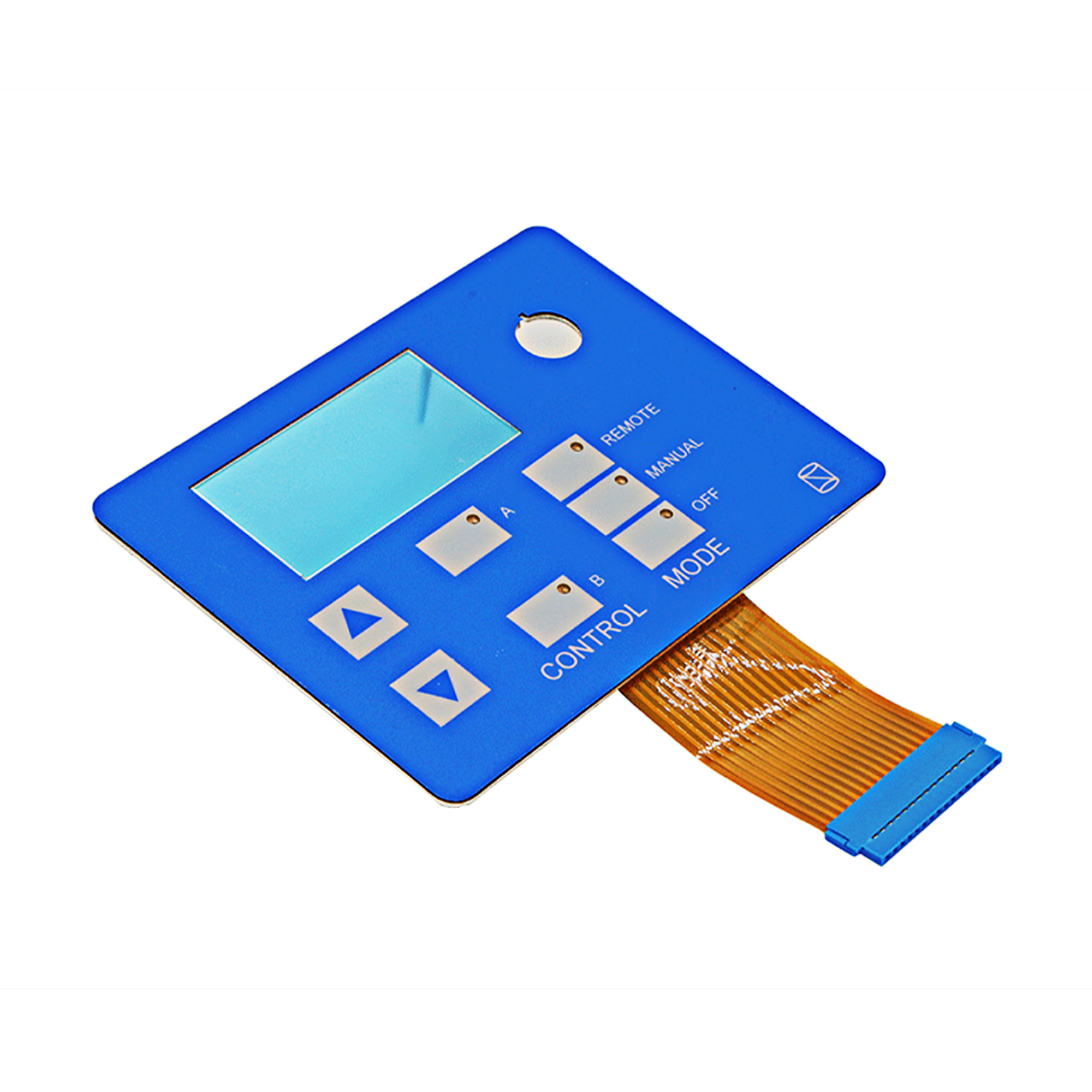

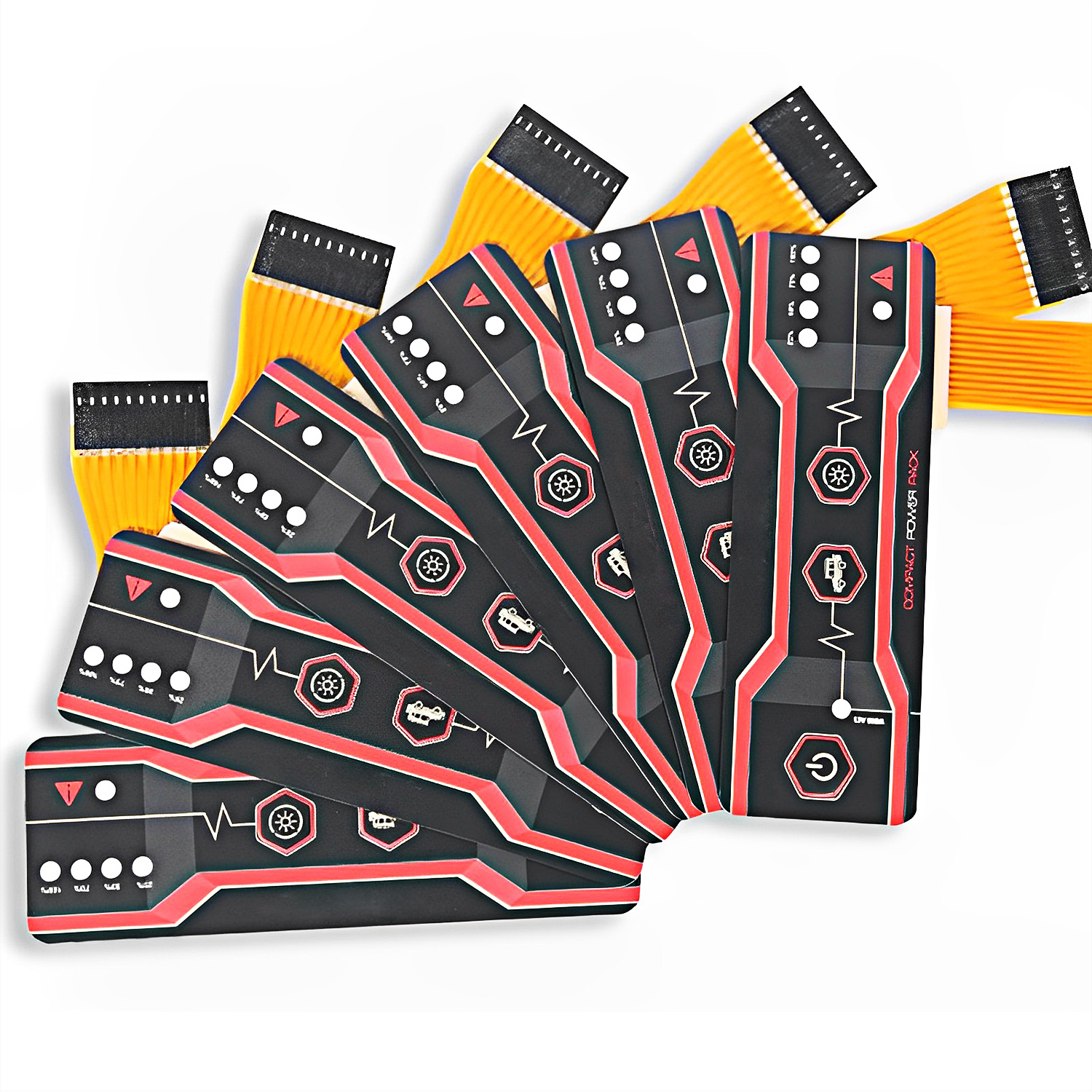

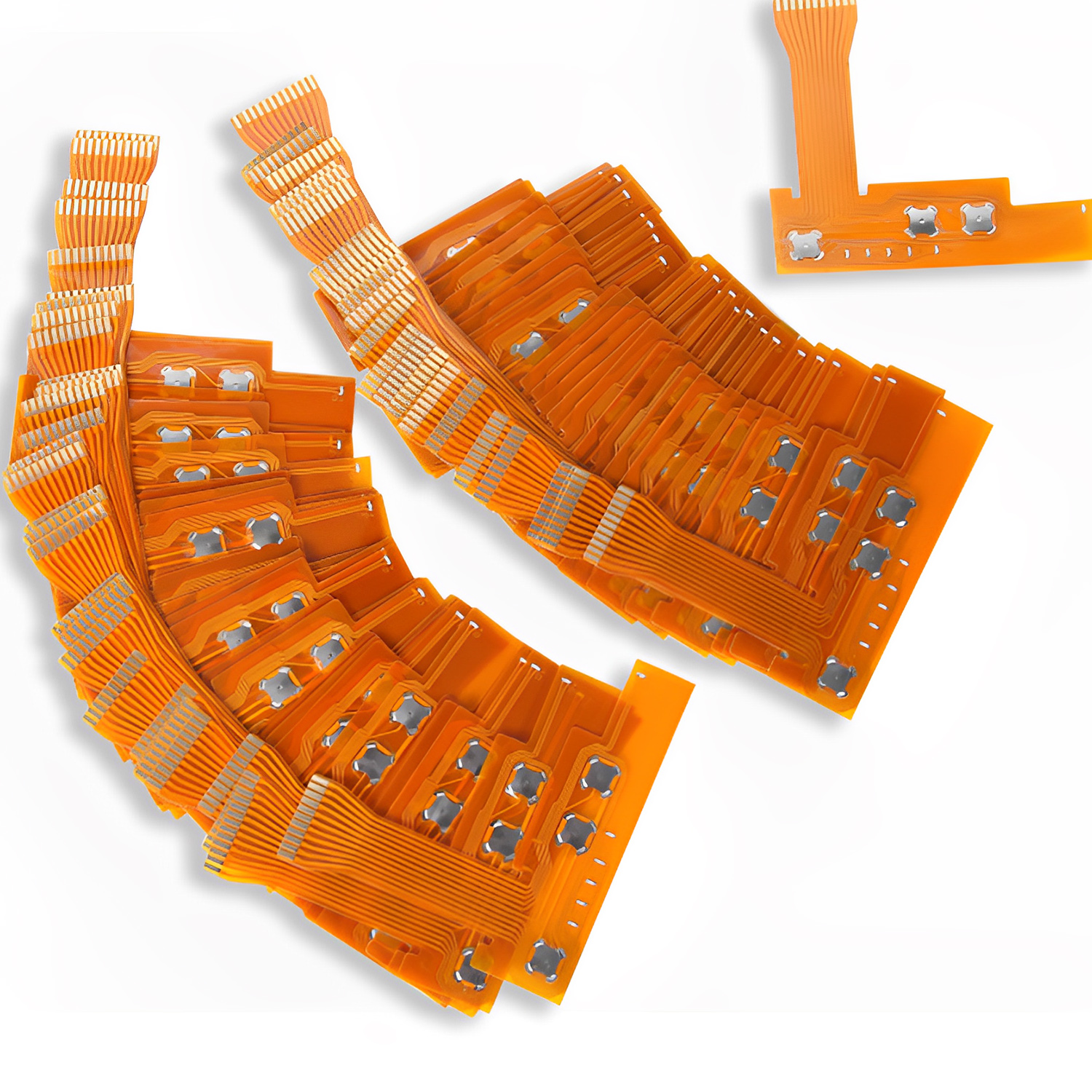

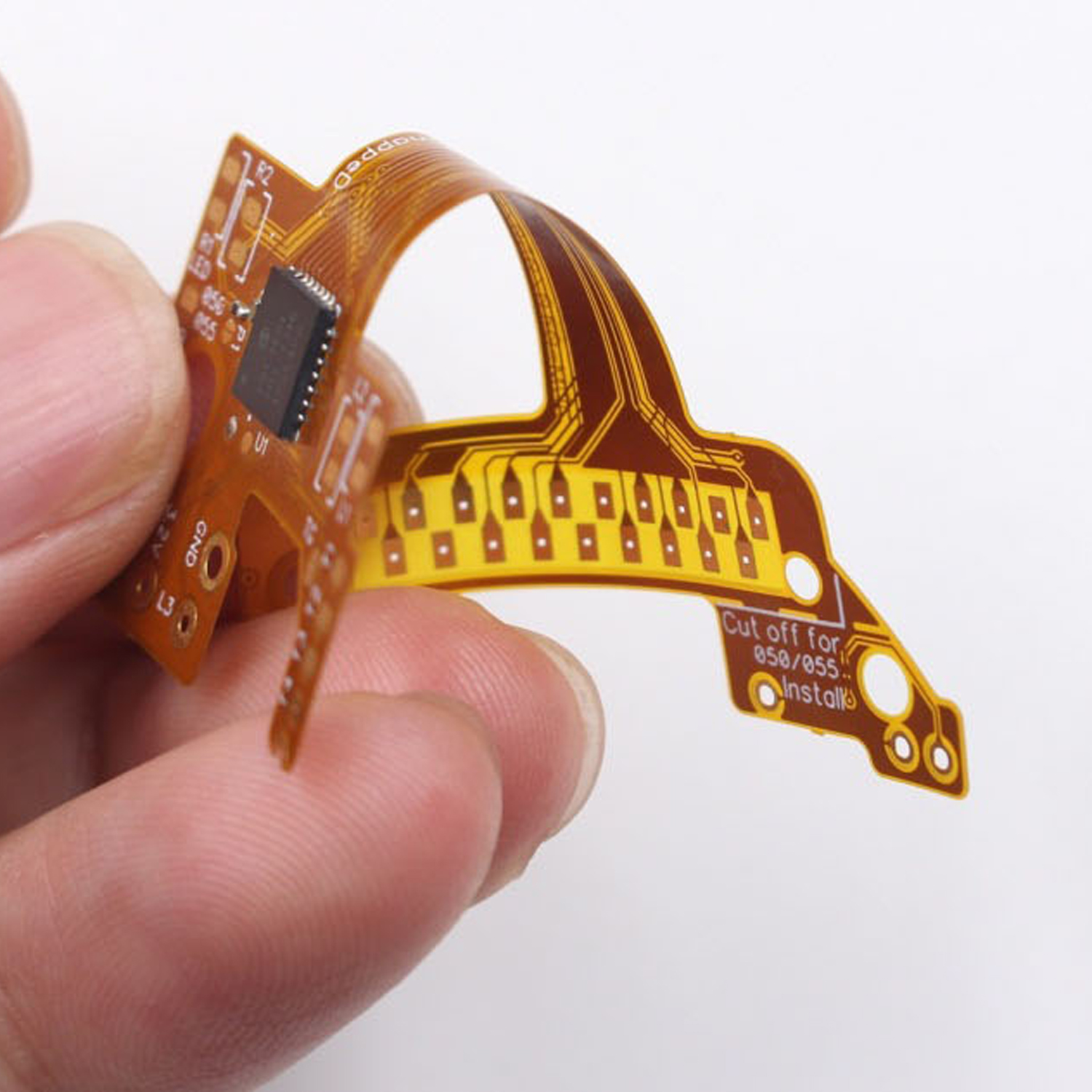

"Flexible printed circuit" (FPC for short) is a flexible circuit board. FPC is a highly reliable, extremely flexible printed circuit board made of polyimide or polyester film as a substrate, its light weight and thin thickness: this allows FPC to achieve a more compact and thin layout in electronic devices.
Product Features
Thin and flexible:
Flexible printed circuit adopts flexible materials such as polyimide or polyester film as the substrate, so it has the characteristics of light weight and thin thickness. This feature enables FPC to achieve a more compact, thin and light layout in electronic devices.
Flexible printed circuit can be bent, folded, and even twisted at will to adapt to the layout needs of a variety of complex shapes and spaces. This high degree of flexibility is unmatched by rigid circuit boards.
High reliability:
Flexible printed circuit adopts advanced manufacturing process and materials to ensure its high reliability and stability. FPC maintains stable performance in harsh environments such as extreme temperatures, vibration and shock.
High wiring density:
Flexible printed circuit can achieve high density wiring in a limited area, thereby improving the integration and functionality of the circuit board. This is of great significance for the miniaturization and highly integrated design of modern electronic equipment.
Good heat dissipation:
Flexible printed circuit has good heat dissipation performance due to the characteristics of its material and structure. This helps to reduce the temperature of the electronic device and improve the stability and reliability of the device.
Diverse design:
Flexible printed circuit can be customized according to specific needs, including single-layer, double-layer, multi-layer and soft and hard combination of different types. This design flexibility enables the flexible printed circuit to meet a variety of complex application scenarios and requirements.
Product Benefits
Save space and weight:
The thin and flexible characteristics of the flexible printed circuit make it possible to greatly save the space and weight of electronic devices. This is of great significance for the pursuit of miniaturization and portability of modern electronic equipment. At the same time, the FPC can also achieve three-dimensional assembly, further improving space utilization.
Improve performance and reliability:
The high wiring density and flexibility of the flexible printed circuit help to improve the performance and reliability of electronic devices. By optimizing the circuit layout and routing mode, the loss and interference of signal transmission can be reduced, and the overall performance of the equipment can be improved. At the same time, the reliability of the FPC is also higher, reducing the failure rate caused by poor contact, broken lines and other problems.
Reduce costs:
Although the initial design and manufacturing costs of flexible printed circuit may be higher, in the long run, it can reduce the overall cost of electronic equipment. This is because FPC is able to reduce the number of redundant cables and connectors, reducing material costs and assembly costs. At the same time, the reliability and durability of the flexible printed circuit also helps to reduce the maintenance and replacement costs of the equipment.
Strong adaptability:
Flexible printed circuit's diverse design enables it to adapt to a variety of complex application scenarios and requirements. Whether it is aerospace, military fields, mobile communications, consumer electronics, FPC can play its unique advantages and roles.
Improve production efficiency:
FPC's manufacturing process is relatively simple and easy to automate production, which helps improve production efficiency and reduce labor costs. At the same time, the standardized and modular design of the flexible printed circuit also helps to shorten the product development cycle and time to market.
1. The substrate
The substrate of the FPC is the basis of the entire circuit board, which determines the flexibility and durability of the circuit board. Common base materials include polyimide (PI) and polyester (PET) films. Polyimide is widely used because of its excellent high temperature resistance, electrical insulation and chemical resistance, while polyester is used in some cases because of its lower cost and better processability.
2. Copper foil
Copper foil is the conductive layer of FPC and is used to transmit current and signals. Copper foil materials are divided into rolled copper foil (RA) and electrolytic copper foil (ED), which are different in bending resistance and mechanical properties. Copper foil thickness specifications are varied, common 1OZ (35μm), 1/2OZ (18μm), etc., to meet the needs of different circuit designs.
3. The film
The film is the key material connecting the copper foil and the substrate, which provides the adhesive force between the copper foil and the substrate, and ensures the overall stability of the board. In multilayer FPC, the film also plays the role of interlayer insulation.
4. Covering film
The covering film is the protective layer on the surface of FPC, which is usually composed of PI film and epoxy adhesive film. It can not only protect the circuit from the erosion of the external environment, but also improve the wear resistance and scratch resistance of the circuit board.
5. Reinforcing materials
Reinforcing materials are used to enhance the mechanical strength of FPC to prevent bending or deformation during assembly and use. Common reinforcing materials include PI, PET, FR4 and stainless steel, which each have different temperature resistance properties and cost effectiveness.
6. Conductive adhesive
In multilayer FPC, conductive adhesives are used to connect copper foils between different layers to achieve electrical connections of interlayer circuits. Conductive adhesives need to have good electrical conductivity and adhesion to ensure the stability and reliability of the circuit.
6. Insulation layer
The insulation layer is located between the various circuit layers and plays the role of isolation and protection. It prevents interference and short circuits between circuits and provides mechanical support for the circuit board. The insulating layer material is usually the same or similar to the substrate material to ensure overall compatibility and stability.
8. Other auxiliary materials
In addition to the above main materials, other auxiliary materials may also be used in the manufacturing process of FPC, such as release paper, electromagnetic protective film, etc. These materials play an auxiliary and protective role in the manufacturing and assembly process of the circuit board.
